Quickstart CLI

Overview

Ask your AI to “use tscircuit to create a circuit project and start the preview.” It can handle installation and run the CLI in environments with tool access. The steps below explain how to do this yourself and refine the result.

Start by asking your AI to “use tscircuit.”

Tell your AI what you want to build. In environments where your AI can install and run tools, it can download and use tscircuit automatically—you usually don’t need to install anything yourself.

Try: Use tscircuit to design a USB-powered LED board.

Manual installation

You can install the tscircuit CLI by running npm install -g tscircuit.

Create a new Project

First, create a new tscircuit project by running tsci init. This will create a new directory with all the necessary files to get started:

$ tsci init
Created: ./index.tsx
Created: ./.npmrc
Created: ./package.json
Created: ./tsconfig.json
Created: ./.gitignore
Initializing project in ./...
Updated package.json to remove unnecessary fields.
Installing dependencies...

added 38 packages, and audited 39 packages in 26s

3 packages are looking for funding
  run `npm fund` for details

found 0 vulnerabilities
Dependencies installed successfully.
🎉 Initialization complete! Run "tsci dev" to start developing.

Run the Development Server

Next, start the development server by running tsci dev. This will start a local server that automatically rebuilds your circuit when you make changes:

$ tsci dev
Found entrypoint at: ./index.tsx
Installing types for imported snippets... done

  @tscircuit/cli@0.1.79 ready in 444ms

  ➜ Local:   http://localhost:3020

Watching ./ for changes...

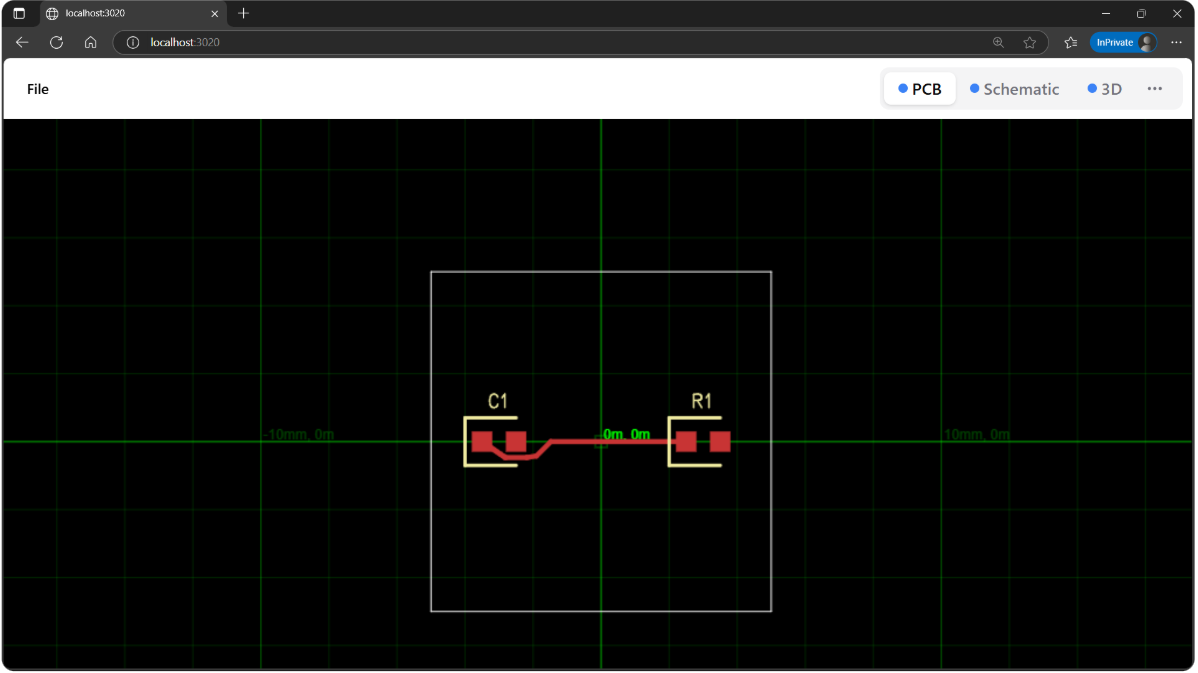

Go to http://localhost:3020. You can now see PCB, Schematic and 3D views of your circuit, which update in real-time as you make changes to your code.

Using the CLI Offline

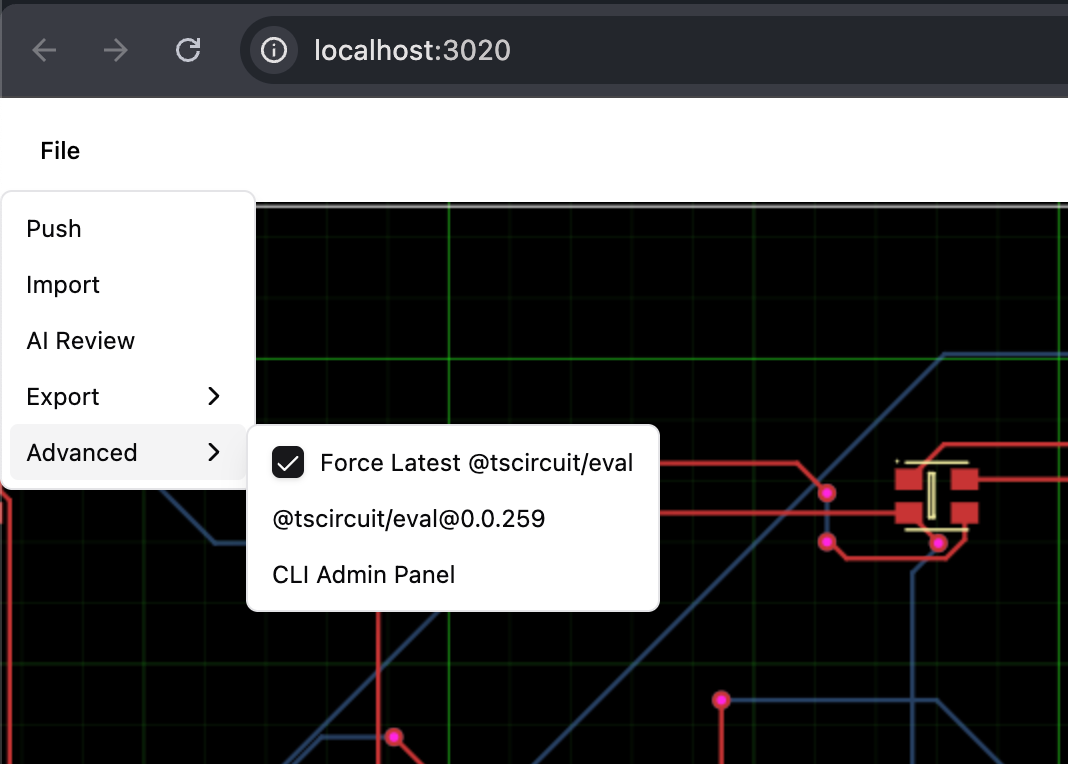

To use the CLI offline, you need to disable the "Force Latest @tscircuit/eval" option in the file menu. Click on "File" in the top menu, then uncheck the "Force Latest @tscircuit/eval" option:

Pushing to the tscircuit Registry

Next, you push your project by running tsci push. This will push your project to your registry.

$ tsci push
Detected entrypoint: "index.tsx"
Updated tscircuit.config.json with detected entrypoint
Package author does not match the logged in GitHub username
✔ Package "@tsci/dhvll.testProject" does not exist. Create it? … yes
✔ Package Visibility: › Public
✔ Snippet Type: › Board
Package created

↑ index.tsx
↑ package-lock.json
↑ package.json
↑ tscircuit.config.json
↑ tsconfig.json
"@tsci/dhvll.testProject@1.0.0" published!
https://tscircuit.com/dhvll/testProject

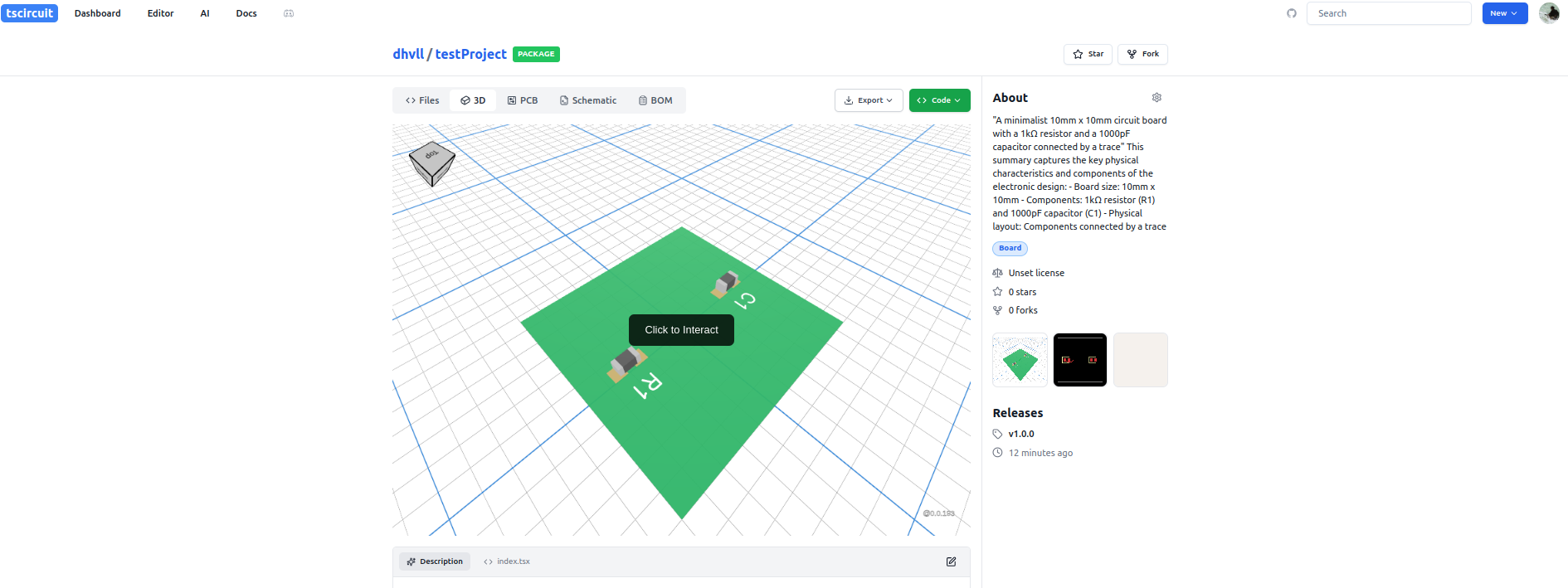

Go to your tscircuit account. You can now see PCB, Schematic and 3D views of your circuit in you registry.

Exporting to SVGs, PDF, or Fabrication Files

This section is coming soon!
